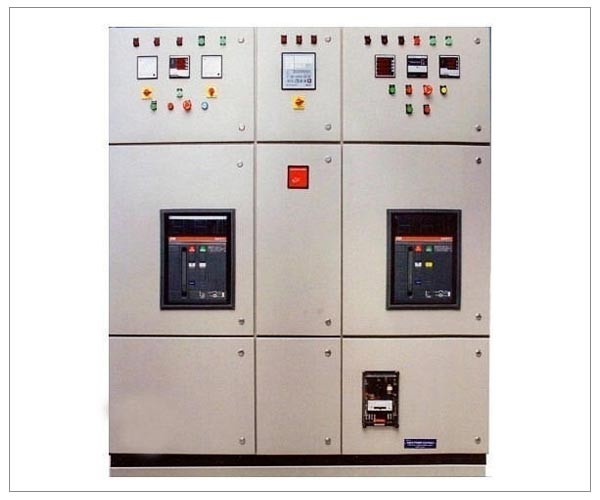

Description

AMF Panel will operate on an Automatic Mains Failure. when the mains supply is interrupted on one or all phases (after adjustable delay period) the generator sets will start up together after an initial warm up period the generator will synchronize with each other by means of motorized circuit breaker or Contactors onto a common busbar next motorized changeover switch will be closed and load will be connected to the main distribution board. Load share units continuously monitor the load and during demand periods one or two generators will restart synchronized and reconnected to the load. When the AMF control unit detects that the main supply has been restored an adjustable observation period is activated before the main supply is reconnected.

Key features of AMF Panel

1- 3 or 4 Pole Systems as required.
2- Various combination of load transfer by ACBs, MCCB or Contactors
3- Ingress Protection Class Up to IP 54.
4- Automatic and Manual Synchronizing by AMF Controller
5- Rating up to 4000 amps.
6- Control functions available for engine monitors, warm up and Cool down periods, Emergency Shutdown
